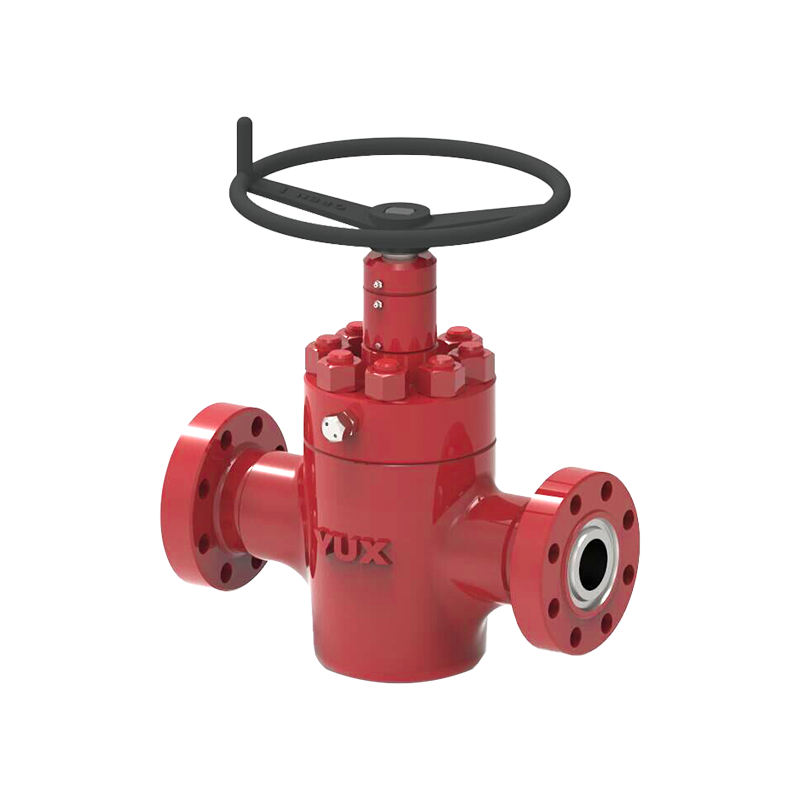

Common API 6A Gate Valve Faults and How to Prevent Them?

API 6A Gate Valves are widely used in oil, gas, and other high-pressure, harsh environments for fluid control. Due to the extreme temperatures, pressures, and corrosive substances often encountered, API 6A Gate Valves can experience common failures over time. Understanding these failures and taking appropriate preventative measures can significantly extend the valve’s service life and ensure safety.

1. Common Failures

1. Leakage Issues

• Type: Leakage may occur at the sealing surfaces, valve seats, or packing of the API 6A Gate Valve. Leakage typically happens when the valve is opened or closed, causing poor contact between the valve seat and sealing surfaces, or when the packing does not seal properly.
• Causes: Over time, the sealing surfaces may become uneven due to wear, corrosion, or damage, reducing their sealing performance. Additionally, aging or insufficiently compressed packing can lead to leakage.
• Impact: Leakage causes fluid to escape, leading to energy wastage, environmental pollution, and in high-pressure systems, potential safety hazards such as fires or explosions.

2. Sticking and Inability to Open/Close

• Type: Sticking may occur, preventing the API 6A Gate Valve from operating correctly, either being unable to open or close.
• Causes: In high-temperature and high-pressure environments, deposits like minerals or salts may accumulate inside the valve body, leading to stickiness. Similarly, friction between the valve stem and body may increase, causing difficulty in operation.
• Impact: Sticking valves cannot operate properly, affecting the flow control. If the issue is severe, the valve may fail completely, disrupting the normal function of the system.

3. Rough Valve Operation

• Type: API 6A Gate Valve may show resistance when opening or closing, resulting in jerky or uneven movement.
• Causes: The mechanical parts of the valve, such as the valve stem, body, or valve disc, may wear out over time due to friction, leading to resistance. Lack of lubrication or corrosion can worsen this condition.
• Impact: Rough operation increases energy consumption during valve operation and may cause excessive wear on valve components, shortening their lifespan.

4. Corrosion and Wear

• Type: API 6A Gate Valves may experience corrosion or wear, especially when exposed to high temperatures, high pressures, or corrosive fluids.
• Causes: Corrosion occurs due to the presence of substances like hydrogen sulfide, saltwater, or other chemicals in the fluid. Wear generally occurs at the sealing surfaces or friction areas between the valve seat and disc, where continuous friction causes material degradation.
• Impact: Corrosion and wear lead to valve failure, reducing sealing integrity and potentially compromising the precision of fluid control. They also increase maintenance costs, and in extreme cases, may completely damage the valve.

5. Sticking Due to Thermal Expansion

• Type: In high-temperature environments, API 6A Gate Valves may become stuck due to excessive thermal expansion, particularly at sealing components or the valve stem.
• Causes: High temperatures cause both metal and sealing materials to expand. If this expansion exceeds tolerances, the parts may interfere with each other, preventing smooth operation of the valve.
• Impact: A stuck valve cannot be opened or closed, disrupting the flow and potentially damaging the equipment.

2. Preventive Measures for Valve Failures

To effectively prevent the common failures mentioned above, the following targeted measures can be implemented:

1. Regular Inspections and Maintenance

• Method: Regularly inspect the valve’s sealing surfaces, valve seats, and packing to ensure they are not worn or degraded. Use ultrasonic testing or pressure drop tests to detect any leakage.
• Purpose: Timely inspections allow for the early detection of potential problems, enabling repairs or part replacements before they worsen.
• Recommended Inspection Frequency: For high-pressure systems, a comprehensive inspection should be conducted every 3 to 6 months.

2. Use of Proper Lubricants and Sealing Materials

• Method: Select appropriate lubricants based on the operating environment, and ensure the lubricant’s quality and quantity are maintained. Additionally, choose sealing materials that are resistant to high temperatures and corrosion to ensure effective sealing.
• Purpose: Lubricants reduce friction during operation, preventing rough movement and mechanical wear. High-quality sealing materials maintain sealing integrity, reducing the risk of leakage.
• Lubricant and Sealing Material Selection Recommendations:

3. Corrosion Protection

• Method: Regularly apply anti-corrosion coatings or choose materials with inherent corrosion resistance (such as stainless steel or alloys) for manufacturing the valve.

• Purpose: Anti-corrosion coatings and corrosion-resistant materials help prevent valve damage in harsh environments.

• Coating Selection Recommendations:

  • Epoxy Coating: Suitable for most non-high-temperature environments and offers good corrosion resistance.
  • Polyurethane Coating: Best for marine and humid environments, with excellent corrosion resistance.

4. Proper Valve Material Selection

• Method: Choose the appropriate valve materials based on the temperature, pressure, and fluid characteristics of the operating environment.

• Purpose: The correct material increases the valve’s resistance to corrosion, wear, and mechanical stress, preventing failure due to material incompatibility.

• Common Valve Material Choices:

  • Carbon Steel: Suitable for general environments but not resistant to high temperatures or corrosion.
  • Stainless Steel/Alloy Steel: Ideal for high-temperature, high-pressure, and corrosive environments.

5. Correct Operation and Use

• Method: Operate the API 6A Gate Valve according to the manufacturer’s instructions, avoiding over-tightening, abrupt opening/closing, and sudden temperature/pressure changes.
• Purpose: Proper operation reduces mechanical stress, minimizing the risk of sticking or other mechanical failures caused by improper use.

6. Special Treatment for High-Temperature Environments

• Method: In high-temperature environments, use high-temperature packing and sealing materials, and consider installing cooling devices to maintain valve temperature stability.
• Purpose: This prevents sticking caused by excessive thermal expansion of valve parts.

7. Installation Considerations

• Method: Ensure the valve is installed in the correct orientation, avoiding incorrect placement that could result in poor sealing or mechanical damage. During installation, ensure smooth alignment between the valve and pipe to prevent leakage or sticking.
• Purpose: Proper installation prevents issues like leakage or sticking that can arise from misalignment or improper installation.
